Architecture¶

The gateway is a single Python process that speaks MCP over stdio (ADR-0003). An MCP host/client calls named tools; each call is validated, turned into a parameterized read-only query, executed against PostgreSQL through a hardened session, and returned as JSON-safe data. This page describes the system as it is built today.

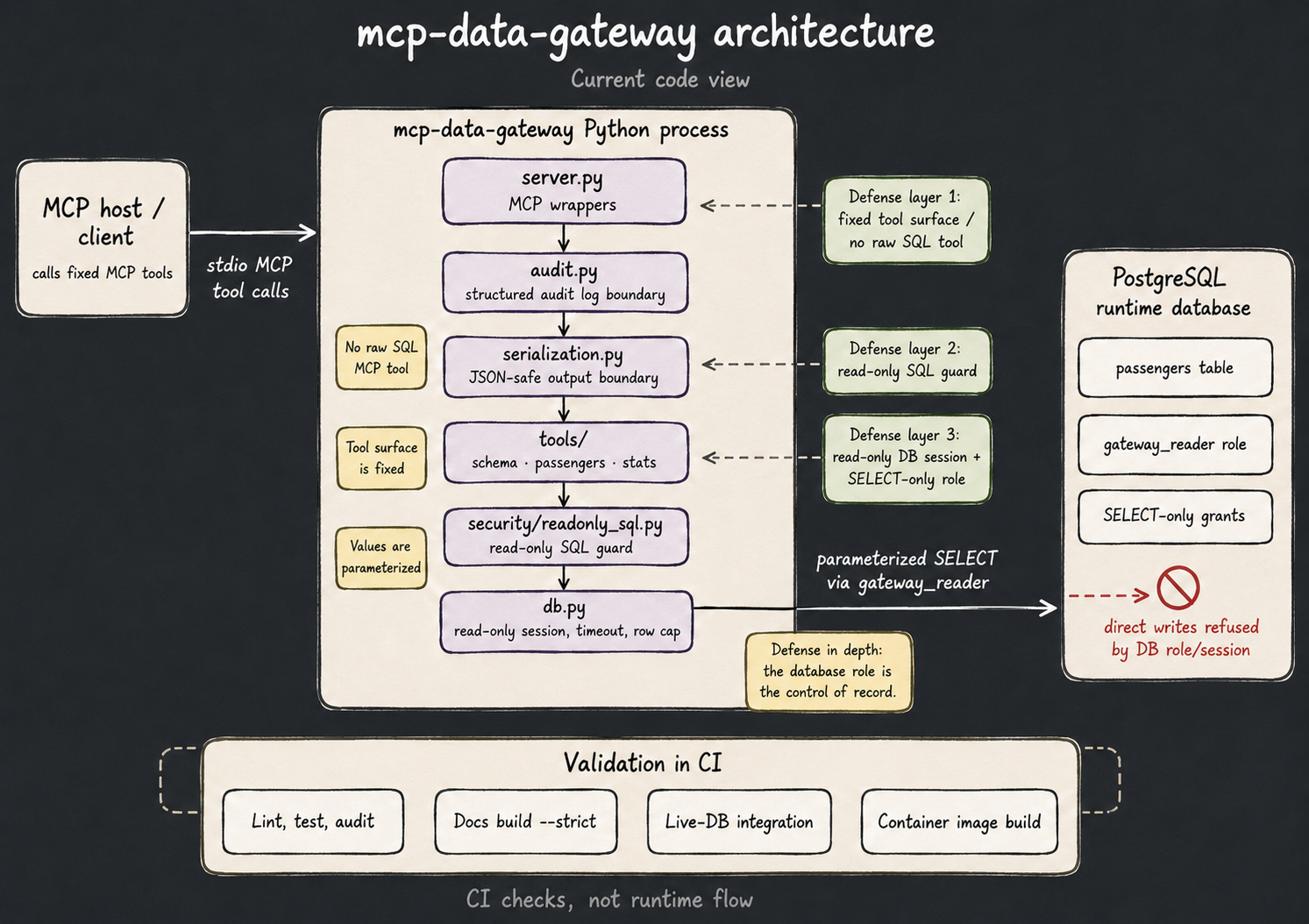

mcp-data-gateway architecture

The textual description below is the authoritative reference; the diagram is a rendered overview of the same system.

Request path¶

MCP host / client
      │  (stdio, JSON tool calls)
      ▼
server.py            MCP tool wrappers (fixed surface, no raw-SQL tool)
      │
      ├─ audit.py            audit-logging boundary: one structured line per call
      ├─ serialization.py    JSON-safe boundary: Decimal → float, recursive
      │
      ▼
tools/               schema.py · passengers.py · stats.py
      │              (argument allow-lists; parameterized values only)
      ▼
security/readonly_sql.py   read-only SQL guard (single SELECT, allow-listed tables)
      │
      ▼
db.py                execute_readonly: read-only session + statement timeout + row cap
      │  (SQL, read-only role)
      ▼
PostgreSQL           passengers table, queried by the gateway_reader SELECT-only role

Components¶

Component	Responsibility
`server.py`	Registers the six MCP tools over stdio; each wrapper is thin and applies the audit and serialization boundaries.
`audit.py`	Emits one structured log line per tool call (name, sanitized args, outcome, count/error type). No raw SQL or credentials.
`serialization.py`	Converts tool output to JSON/MCP-safe values (notably `Decimal` → `float`), recursively and without mutating source rows.
`tools/schema.py`	`list_tables`, `describe_table` — curated metadata for the allow-listed table.
`tools/passengers.py`	`get_passenger`, `search_passengers` — validated, parameterized lookups.
`tools/stats.py`	`survival_summary`, `survival_by` — aggregates over fixed query templates.
`security/readonly_sql.py`	Deny-by-default guard: a single `SELECT`, allow-listed tables, no comments/chaining/dangerous functions.
`db.py`	psycopg connections with `default_transaction_read_only = on`, a statement timeout, and a result-row cap.
`config.py`	Typed settings loaded and validated from the environment.

Runtime and database¶

The server connects as gateway_reader, a PostgreSQL role created by scripts/load_titanic.py with SELECT-only grants on passengers and no write privileges (ADR-0002). The demo dataset is a small, deterministic Titanic-style passengers table, kept intentionally small so the focus stays on the gateway pattern rather than data engineering.

Continuous integration¶

CI (GitHub Actions) has three jobs:

quality — make lint, make test, make audit (ruff, pytest, bandit, pip-audit); no database.
integration — a PostgreSQL service container; runs make load-data, make smoke, and the opt-in live-DB tests.
image — builds the container image and runs an import-only sanity check plus a non-root assertion; no database.
